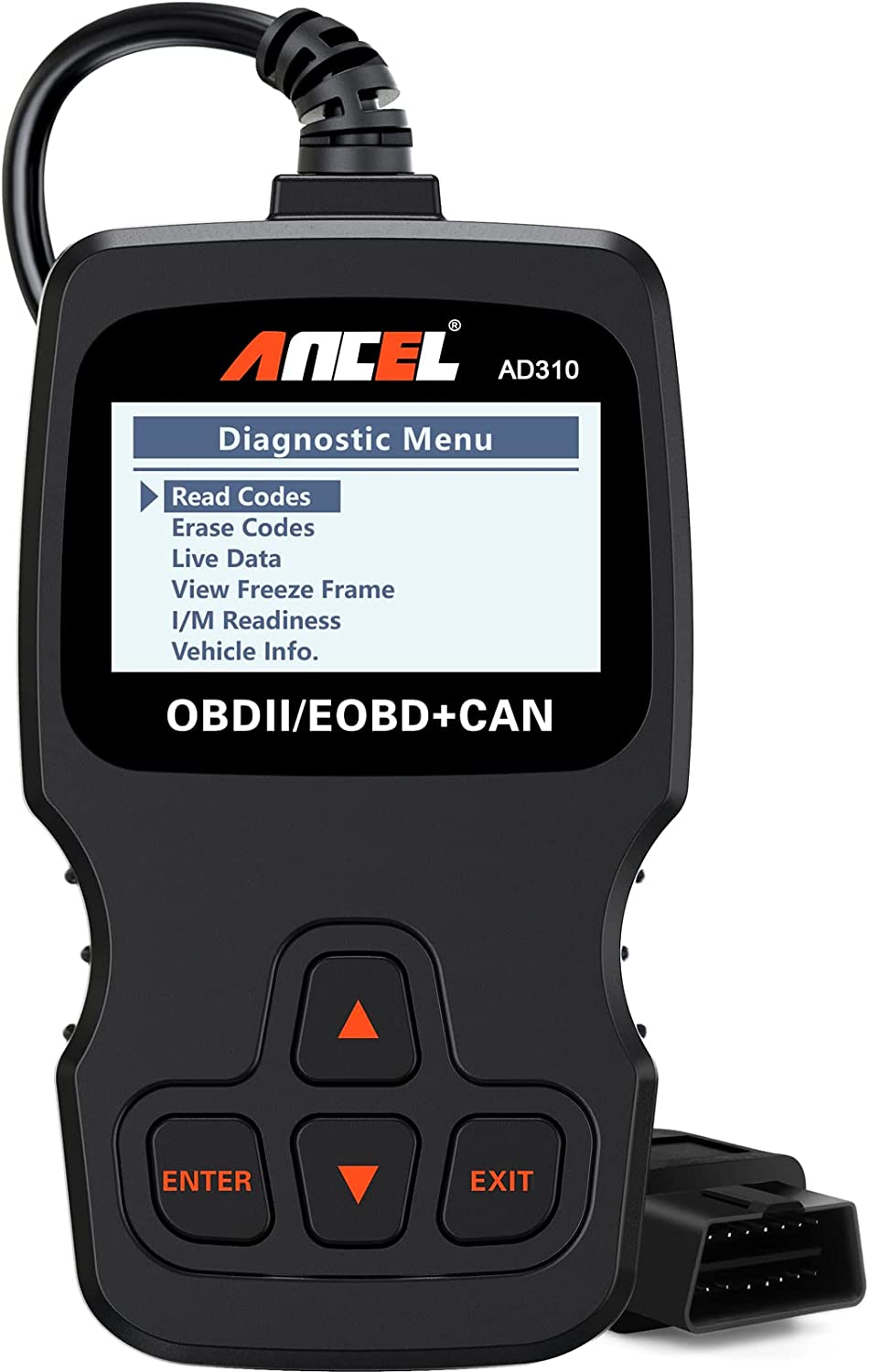

ANCEL AD310 Classic Enhanced Universal OBD II Scanner Car Engine Fault Code Reader CAN Diagnostic Scan Tool-Black

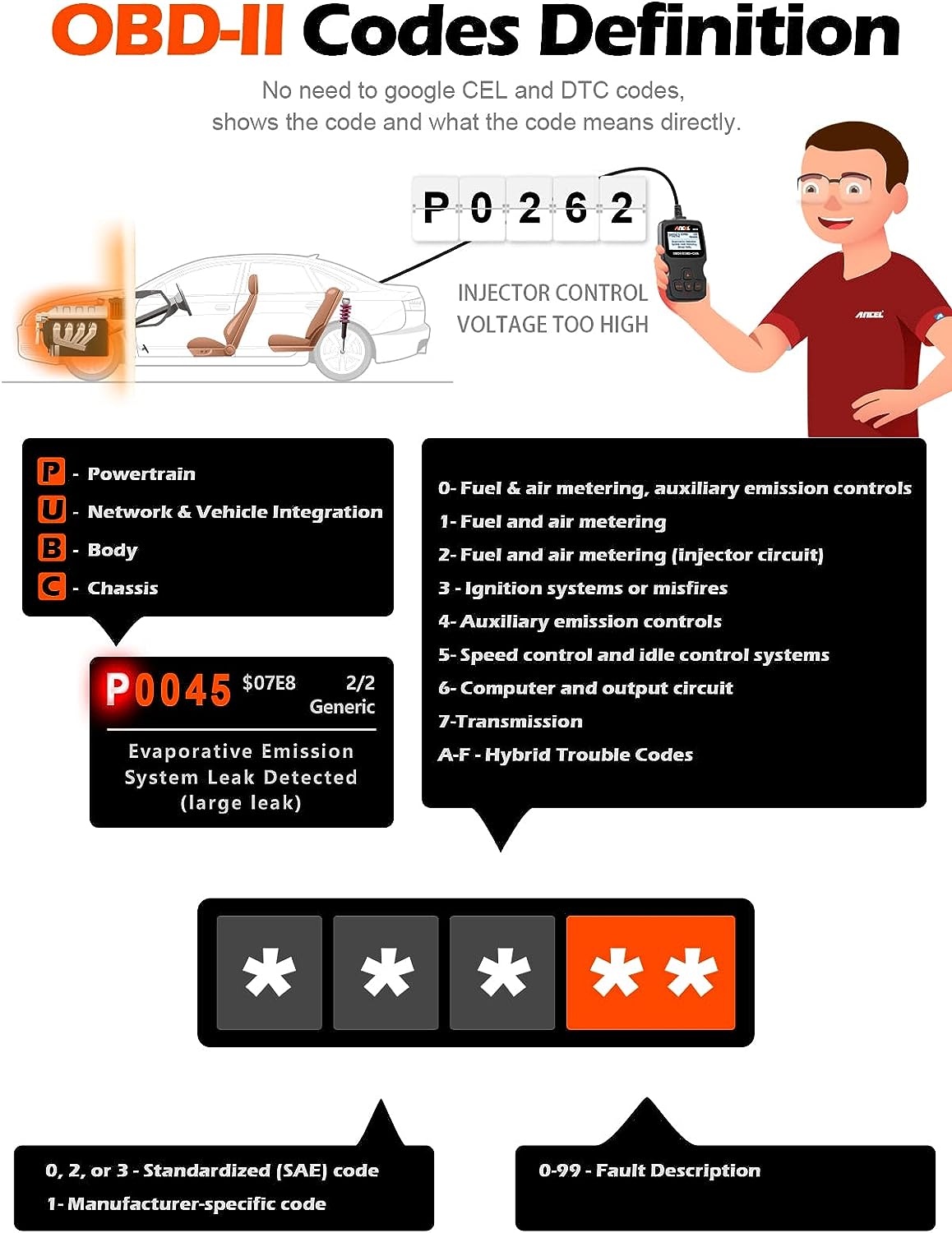

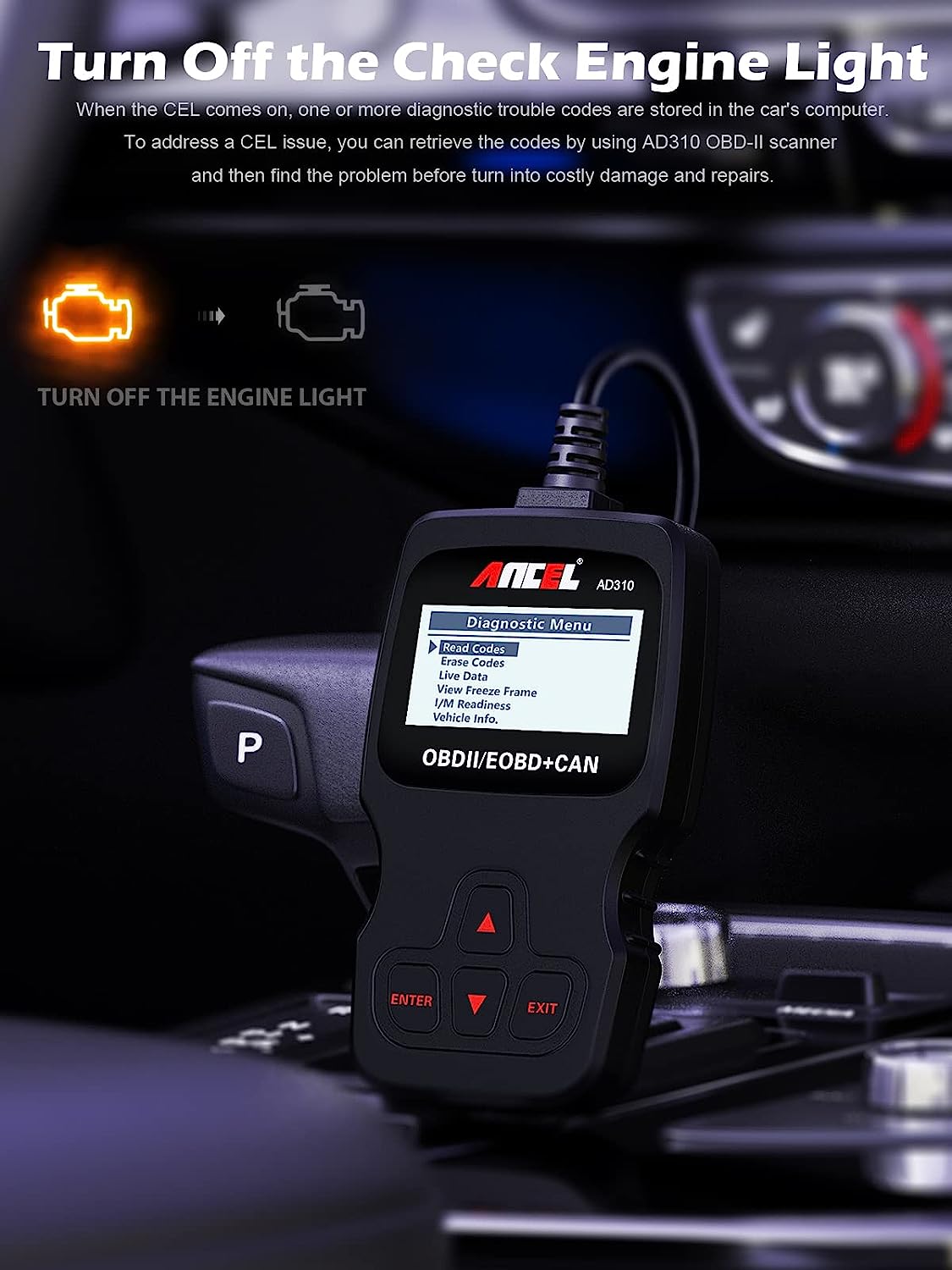

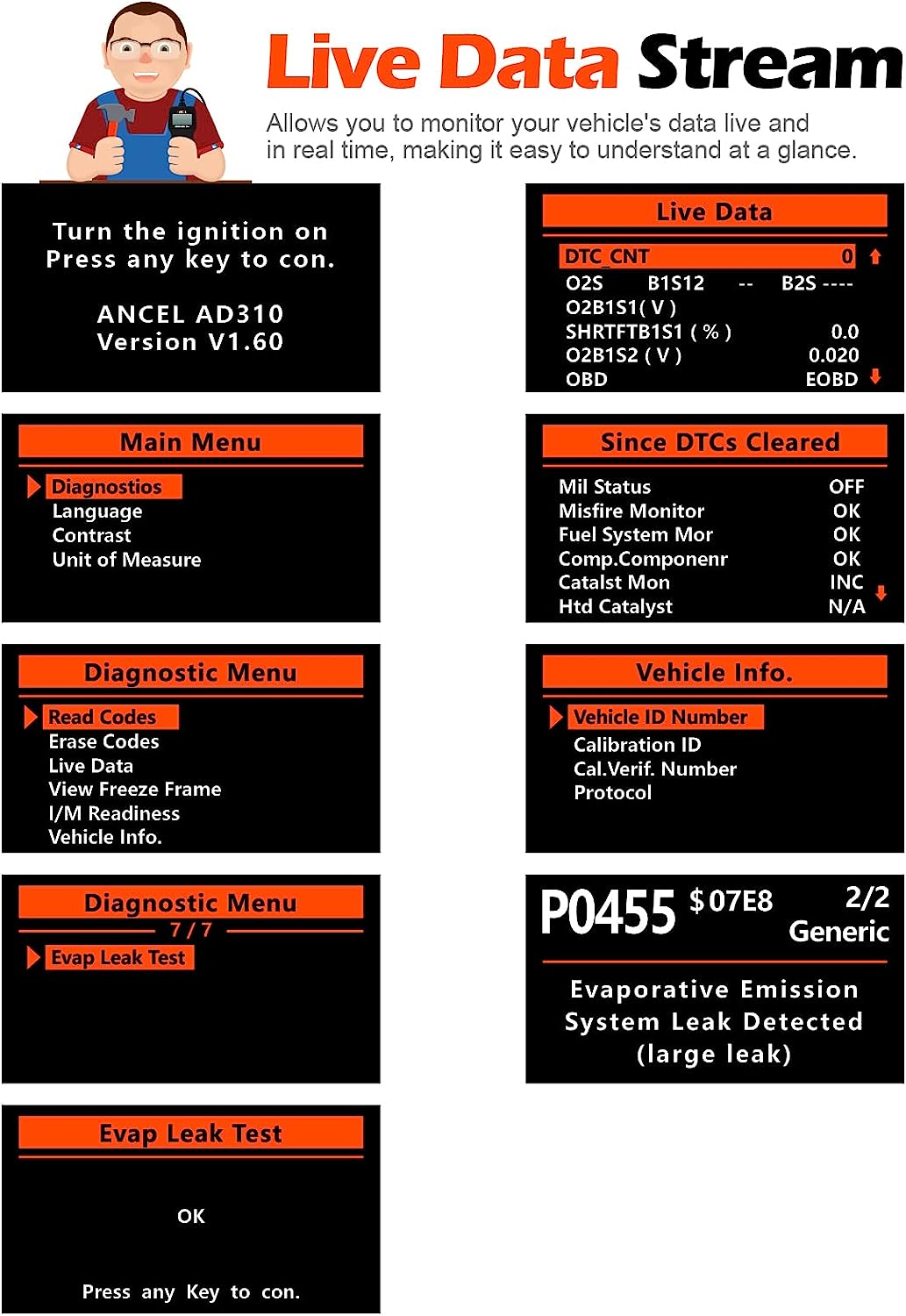

The check engine light comes on halfway through a Tuesday commute, and instead of booking a shop visit, the ANCEL AD310 plugs straight into the OBD II port to name the fault. It reads and clears trouble codes, shows code definitions, live data, hard memory data, freeze frame, I/M monitor readiness and vehicle information. The scanner measures 8.9 x 6.9 x 1.4 inches, weighs 12 ounces and comes with a 2.5 foot cable in thick flexible insulation. Power is drawn from the vehicle's Data Link Connector, so no batteries or charger are needed.

It supports all OBD II protocols, including KWP2000, J1850 VPW, ISO9141, J1850 PWM and CAN. Confirm your vehicle model is covered before ordering.

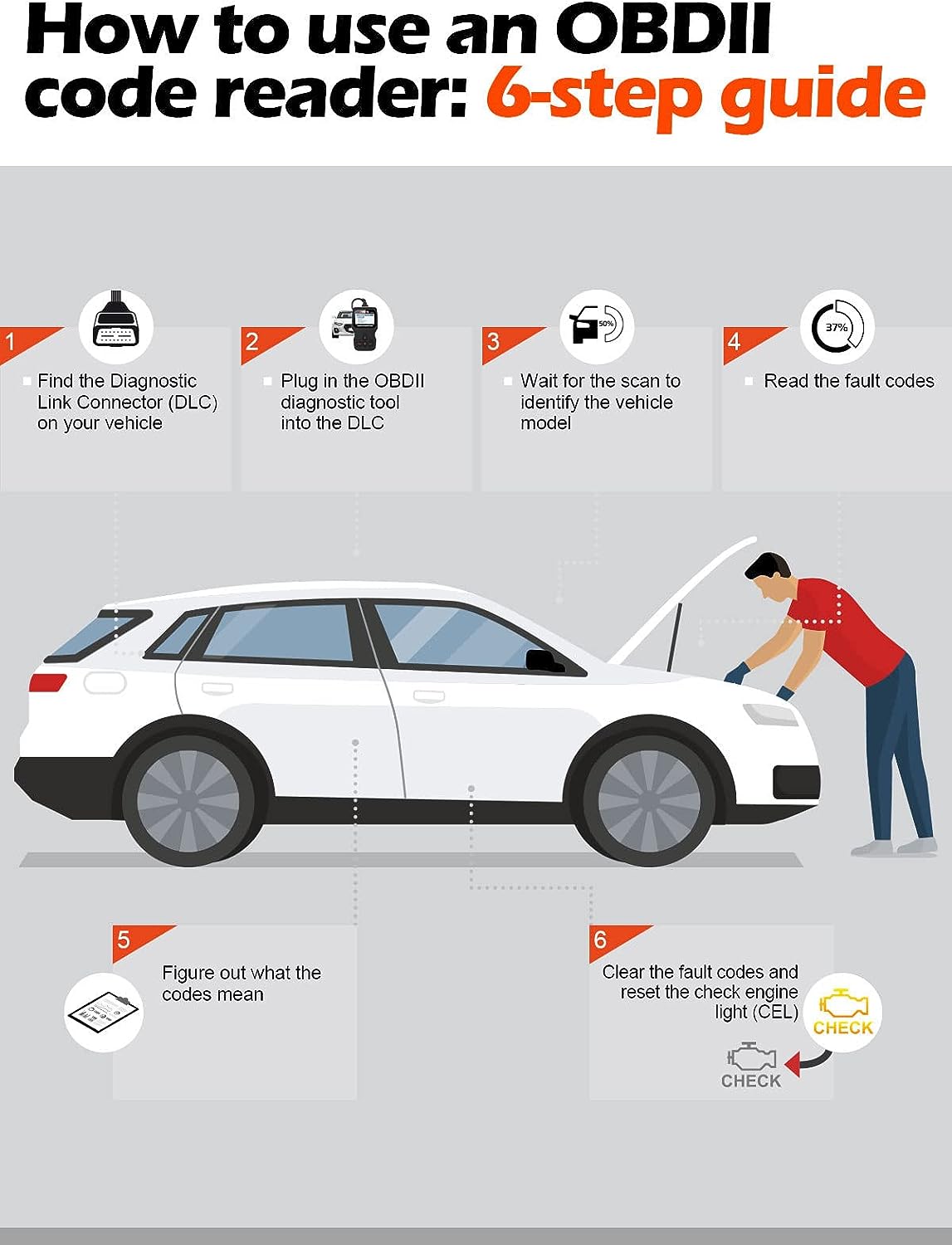

Getting started takes a few seconds: locate the OBD II port, which is typically found beneath the dashboard on the driver's side, plug in the cable, and turn the ignition to the on position without starting the engine. The scanner powers up from the port itself, walks through a short menu, and returns a plain-language code definition rather than a raw alphanumeric string, which means you can look up the fault and decide whether it is something to address immediately or monitor over a few more drives. Clearing a code after a repair and then watching the I/M readiness monitors cycle back to ready is a useful way to confirm the fix took before heading in for an emissions test.

The compact dimensions make it practical to keep in a glove box or center console rather than in a garage toolbox, so it is available when a warning light appears away from home. When comparing scanners in this category, the main things to check are protocol coverage and whether the display shows code definitions on screen rather than requiring a separate reference booklet. The AD310 covers both points. It suits owners who want a straightforward tool for reading and clearing codes on personal vehicles and who do not need the bidirectional controls or system-specific coverage found on professional-grade equipment.
